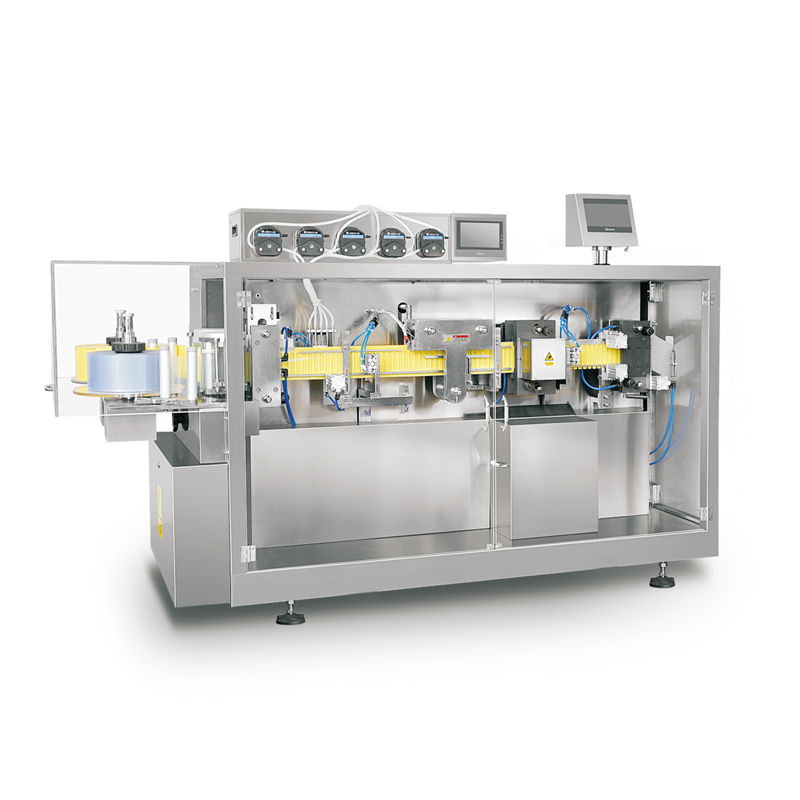

GGS-240(P5-A)口服液自動灌封機

該機是一種塑料瓶熱成型灌封設備,適用于制藥,農藥,化妝品,食品飲料,保健品等行業液體或膏體類物料的大批量灌裝。廣泛用于口服液,液體農藥和肥料,電子煙油,化妝品,食用油,飲料,液體保健品等物料的灌裝。
商品信息
性能及特點
1.HC 高速高精度高端運動控制器。無級變頻調速控制。伺服電機控制拉膜裝置。
2.人機界面裝置,操作簡單。
3.自動放卷,卷膜分切。有光電正反面圖案對版功能。產品精美,滿足高標準的包裝要求。
4.采用電子蠕動泵裝置和機械泵活塞泵控制,調正方便。
5.灌裝精度正確,灌裝不滴漏,不起泡沫,不溢出。
6.與藥接觸的部位采用優質不銹鋼 316L,機器外罩全部是SUS304不銹鋼。符合GMP標準。
7.瓶子底部是平的,可以立起來。
8.切刀單獨雙伺服電機控制、要幾支一板多可以隨便切。

PERFORMANCE CHARACTERISTICS
1.High capacity, high speed, high precision, and advanced motion controller. Stepless frequency conversion speed regulation control. Servo motor controls film traction device.
2.Human-machine interface, easy to operate.
3.Automatic unwinding, roll film cutting. It has positive and negative pattern alignment function with photoelectric device. The product is exquisite and beautiful, which meets high standard of packing requirements.
4.It adopts electronic peristaltic pump device and mechanical piston pump
control, which hasconvenient adjustment.
5.High filling accuracy with suction back function without any dripping.
6.The parts contacting with the medicine adopt high quality stainless steel 316L, and the outercover of the machine is made of SUS304 stainless steel, which meets with GMP standard.
7.As the bottom of the bottle is flat, so it can stand.
8.The cutter is individually controlled by dual servo motors, and you can cut at will if you need several pieces per board.

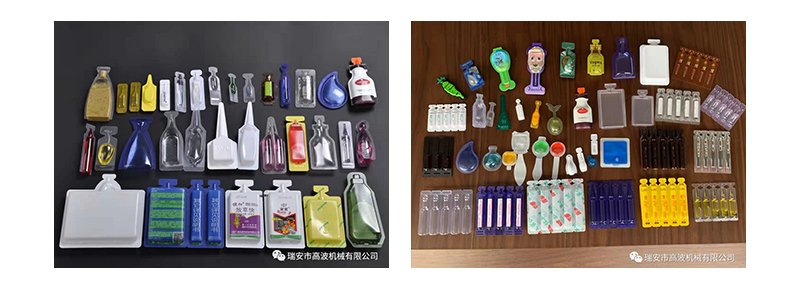

產品用途



該機是一種塑料瓶熱成型灌封設備,適用于制藥,農藥,化妝品,食品飲料,保健品等行業液體或膏體類物料的大批量灌裝。廣泛用于口服液,液體農藥和肥料,電子煙油,化妝品,食用油,飲料,液體保健品等物料的灌裝。


APPLISCATION
This machine is a plastic bottle thermoforming filling and sealing equipment, which is suitable for large-scale filling of liquid or paste materials in pharmaceutical, pesticide, cosmetic, food and beverage, health care products and other industries.It is widely used in the filling of oral liquid, liquid pesticides and fertilizers, electronic cigarette oil, cosmetics, edible oil, beverages, liquid health products and other materials.

主要技術參數

最大成型深度

Max. forming depth

12mm

沖裁次數

Punch frequency

0-25次

包裝材料

Packing material

PVC/PE,PET/PE(0.2-0.4)140?mm

灌裝容量

Filling volume

1-50ml

電源總功率

Toal power supply power

7KW

電壓

Voltage

380V/50Hz

整機重量

Machine weight

1000Kg

外形尺寸(長x寬x高)

Overall dimension (L*W*H)

3380×950×1800(mm)

分體尺寸

2500×950×1800(mm)
