性能及特點
1.PLC 控制,無級變頻調速。
2.放卷,塑料成型,灌裝,打批號,壓痕,切尾,分切等 7 個工位由程序自動完成。
3.人機界面裝置,操作簡單明了。
4.灌裝頭不滴漏,不起泡沫,不溢出。
5.與藥液接觸的相關部位全部采用優質不銹鋼材料,符合 GMP 標準。
6.主要氣動元件,電器采用進口配件。
7.電子蠕動泵自控灌裝系統與機械灌裝兩種,計量準確誤差小。
1.It adopts PLC control and stepless frequency conversion speed regulation.
2.The working processes such as unwinding, plastic forming, filling, batch number printing,indentation, punching and cutting are completed automatically by the program.
3.It adopts human-machine interface device, which has simple operation.
4.The filling has no dripping, bubbling, and overflowing.
5.The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.
6.The main penumatic and electrical components adopt imported brand.
7.It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.
產品用途

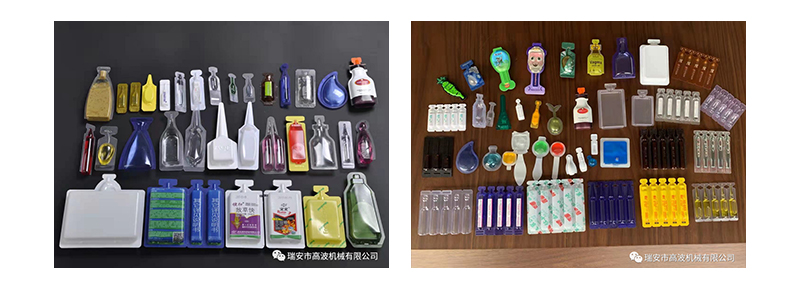

該機是一種塑料瓶熱成型灌封設備,適用于制藥,農藥,化妝品,食品飲料,保健品等行業液體或膏體類物料的大批量灌裝。廣泛用于口服液,液體農藥和肥料,電子煙油,化妝品,食用油,飲料,液體保健品等物料的灌裝。
APPLISCATION
This machine is a plastic bottle thermoforming filling and sealing equipment, which is suitable for large-scale filling of liquid or paste materials in pharmaceutical, pesticide, cosmetic, food and beverage, health care products and other industries.It is widely used in the filling of oral liquid, liquid pesticides and fertilizers, electronic cigarette oil, cosmetics, edible oil, beverages, liquid health products and other materials.
最大成型深度
|
Max. forming depth
|
12mm
|
沖裁次數
|
Punch frequency
|
0-25次
|
包裝材料
|
Packing material
|
PVC/PE,PET/PE(0.2-0.4)×140mm
|
灌裝容量
|
Filling volume
|
1-50ml
|
電源總功率
|
Toal power supply power
|
7KW
|
電壓
|
Voltage
|
220-380V/50Hz
|
整機重量
|
Machine weight
|
900Kg
|
外形尺寸(長x寬x高)
|
Overall dimension (L*W*H)
|
2300×850×1400(mm)
|
