GGS-118(P5)口服液灌裝封機-PM-100 貼標機聯動線

商品信息
性能及特點

1.PLC 控制,無級變頻調速。
2.放卷,塑料成型,灌裝,打批號,壓痕,切尾,分切等 7 個工位由程序自動完成。
3.人機界面裝置,操作簡單明了。
4.灌裝頭不滴漏,不起泡沫,不溢出。
5.與藥液接觸的相關部位全部采用優質不銹鋼材料,符合 GMP 標準。
6.主要?dú)鈩?dòng)元件,電器采用進口配件。
7.電子蠕動泵自控灌裝系統與機械灌裝兩種,計量準確誤差小。

PERFORMANCE CHARACTERISTICS
1.It adopts PLC control and stepless frequency conversion speed regulation.
2.The working processes such as unwinding, plastic forming, filling, batch number printing,indentation, punching and cutting are completed automatically by the program.
3.It adopts human-machine interface device, which has simple operation.
4.The filling has no dripping, bubbling, and overflowing.
5.The parts contacting with medicine all adopt high quality stainless steel material, which meets with GMP standard.
6.The main penumatic and electrical components adopt imported brand.
7.It adopts self-control filling system of electronic peristaltic pump and mechanical filling, which have accurate metering with small error.

主要技術參數

最大成型深度

Max. forming depth

12mm

沖裁次數

Punch frequency

0-25次

包裝材料

Packing material

PVC/PE,PET/PE(0.2-0.4)140?mm

灌裝容量

Filling volume

1-50ml

電源總功率

Toal power supply power

7KW

電壓

Voltage

380V/50Hz

整機重量

Machine weight

900Kg

外形尺寸(長x寬x高)

Overall dimension (L*W*H)

2300×850×1400(mm


PM-100貼標機性能及特點

灌封好的產品從液體灌封機輸出后,由機械手轉接裝置抓取到貼標機輸送帶上進行貼標,節約了勞動力成本。

After the potted product is output from the liquid potting machine, it is grabbed by the manipulator transfer device to the conveyor belt of the labeling machine for labeling, which saves labor costs.

主要技術參數

標簽尺寸

Label size

(L)58mm (W)6mm

適用標簽卷內徑

Applicable label roll inner diameter

Φ76 mm

適用標簽卷內徑

Applicable label roll inner diameter

最大Φ350 mm

整機尺寸

Machine size

2000×600×1800(mm)

電壓

Voltage

AC220V,50Hz/60Hz, 800W

產品用途

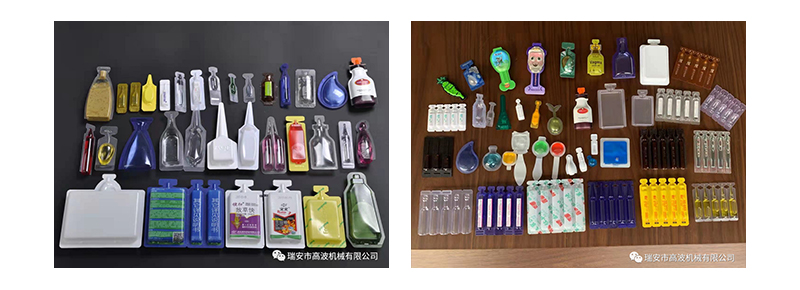

該機適合于單位計量的藥品,飲料、乳制品、保健品、食品、化妝品、香水、農藥品、果漿類等。

APPLISCATION
It is suitable for oral liquid, liquid, pesticide, perfume, cosmetics, fruit pulp, food, etc.
