性能及特點
該聯動生產線將液體灌封機,檢重秤。裝盒機3臺設備完美的連接在一起,大大的減少了人工成本,滿足了客戶對設備自動化的要求。檢重秤的使用可將灌裝量不合格的產品剔除掉,更加嚴格的控制了產品的灌裝量,確保進入到裝盒工序后的產品灌裝量完全達標。裝盒機的連接解決了客戶對后端包裝的需求,大大提高了產品的附加值。
PERFORMANCE CHARACTERISTICS
The linkage production line will be liquid potting machine, checkweigher.The three equipments of the cartoning machine are perfectly connected, which greatly reduces the labor cost and meets the customer's requirements for equipment automation.The use of the checkweigher can eliminate the products with unqualified filling volume, and more strictly control the filling volume of the product, so as to ensure that the filling volume of the product after entering the cartoning process fully meets the standard.The connection of the cartoning machine solves the customer's demand for back-end packaging and greatly improves the added value of the product.
產品用途

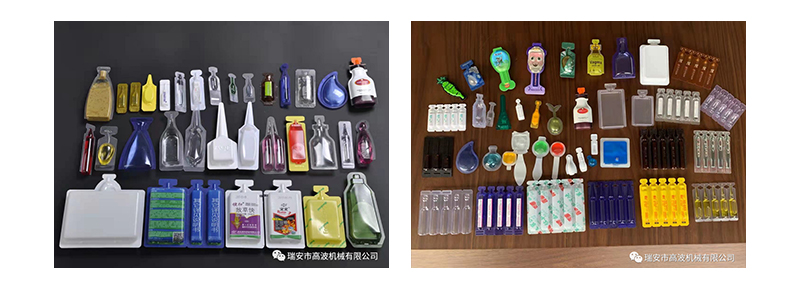

該機是一種塑料瓶熱成型灌封設備,適用于制藥,農藥,化妝品,食品飲料,保健品等行業液體或膏體類物料的批量灌裝。廣泛用于口服液液體農藥和肥料 ,電子煙油,化妝品,食用油,飲料,液體保健品等物料的灌裝。
APPLISCATION
This machine is a plastic bottle thermoforming filling and sealing equipment, which is suitable for batch filling of liquid or paste materials in pharmaceutical, pesticide, cosmetic, food and beverage, health care products and other industries.It is widely used in the filling of oral liquid pesticides and fertilizers, electronic cigarette oil, cosmetics, edible oil, beverages, liquid health products and other materials.
主要技術參數
最大成型深度 |
Max. forming depth |
12mm |
沖裁次數 |
Punch frequency |
180-250次/單切 |
包裝材料 |
Packing material |
PET/PE,PVC/PE,PVE/EVOH |
灌裝容量 |
Filling volume |
1-100ml |
電源總功率 |
Toal power supply power |
22KW |
電壓 |
Voltage |
380V/50Hz |
整機重量 |
Machine weight |
2000Kg |
外形尺寸(長x寬x高) |
Overall dimension (L*W*H) |
5200×1050×1800(mm) |
